Single Stage Water Ring Vacuum Pump: Reliable Industrial Vacuum Solutions

single stage water ring vacuum pump

The single stage water ring vacuum pump represents a fundamental technology in industrial vacuum applications, utilizing water as the sealing medium to create reliable vacuum conditions. This pump operates on a simple yet effective principle where an impeller rotates within a cylindrical casing partially filled with water. As the impeller spins, centrifugal force pushes the water outward, creating a liquid ring that forms compression chambers between the impeller blades. The single stage design means the compression process occurs in one stage, making it ideal for applications requiring moderate vacuum levels up to approximately 33 mbar absolute pressure. The water ring serves multiple purposes: it acts as a sealant between the impeller and casing, provides cooling for the compressed gases, and helps remove condensable vapors from the process. Key technological features include corrosion-resistant materials, precision-machined impellers, and robust shaft sealing systems. The pump housing typically incorporates inlet and outlet ports strategically positioned to optimize gas flow and water circulation. Modern single stage water ring vacuum pumps often include integrated separators to minimize water carryover and automatic controls for water supply management. These pumps excel in handling wet gases, condensable vapors, and even small amounts of liquid without damage to internal components. Common applications span across chemical processing, pharmaceutical manufacturing, food packaging, paper production, and environmental protection systems. The technology proves particularly valuable in processes involving solvent recovery, degassing operations, vacuum distillation, and steam condensation. Industries rely on single stage water ring vacuum pumps for their ability to maintain consistent performance while handling challenging process conditions that would damage other vacuum pump technologies.

Single stage water ring vacuum pumps offer numerous practical benefits that make them the preferred choice for many industrial applications. The most significant advantage lies in their exceptional reliability and minimal maintenance requirements. Unlike other vacuum technologies with complex mechanical components, these pumps operate with just one moving part - the impeller - which dramatically reduces wear points and extends operational life. This simplicity translates directly into lower maintenance costs and reduced downtime for businesses. The water sealing mechanism provides natural lubrication and cooling, eliminating the need for oil changes or complex lubrication systems that plague other pump types. Energy efficiency represents another major benefit, as single stage water ring vacuum pumps consume less power compared to multi-stage alternatives while delivering consistent performance. The pump design inherently handles moisture and condensable vapors without operational issues, making it perfect for processes involving steam, solvents, or humid conditions that would damage dry pumps. Cost-effectiveness extends beyond initial purchase price to include operational expenses, as these pumps require minimal consumables apart from water and occasional impeller replacement. Safety considerations favor single stage water ring vacuum pumps because they operate at lower temperatures and pose no risk of oil contamination in sensitive processes. The absence of metal-to-metal contact within the compression chamber eliminates spark generation, making them suitable for explosive atmospheres when properly configured. Installation flexibility allows for horizontal or vertical mounting configurations, adapting to various space constraints and process requirements. Noise levels remain relatively low compared to other vacuum technologies, contributing to better working environments. The pumps demonstrate excellent chemical compatibility when constructed with appropriate materials, handling corrosive gases and vapors that would destroy conventional vacuum equipment. Process integration becomes seamless due to their ability to operate continuously without performance degradation, supporting 24/7 industrial operations. Temperature stability ensures consistent vacuum levels regardless of ambient conditions, while the self-priming capability eliminates complex startup procedures. These combined advantages position single stage water ring vacuum pumps as versatile, economical solutions for diverse vacuum applications.

Latest News

Dec

Why Is Metal Barrel Corrosion Protection Important for Industrial Use?

Industrial operations across manufacturing, chemical processing, and petroleum sectors rely heavily on metal barrels for storage and transportation of various materials. These containers face constant exposure to corrosive elements that can compromis...

Dec

How Do Small and Intermediate Steel Drums Enhance Chemical Storage Safety?

Chemical storage safety remains a critical concern for industries handling hazardous substances, where the choice of containers can make the difference between secure operations and catastrophic incidents. Small and intermediate steel drums have emer...

Jan

Why Do Inner Coating Steel Drums Provide Better Protection for Sensitive Materials?

The protection of sensitive materials during storage and transportation has become increasingly critical in today's industrial landscape. Industries handling chemicals, pharmaceuticals, and specialty materials require containers that offer superior p...

Feb

How Does a Vacuum Brazing Furnace Improve the Strength of Metal Joints?

Metal joining technologies have evolved significantly over the decades, with brazing standing out as one of the most reliable methods for creating strong, permanent connections between dissimilar materials. The advent of vacuum brazing furnace techno...

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

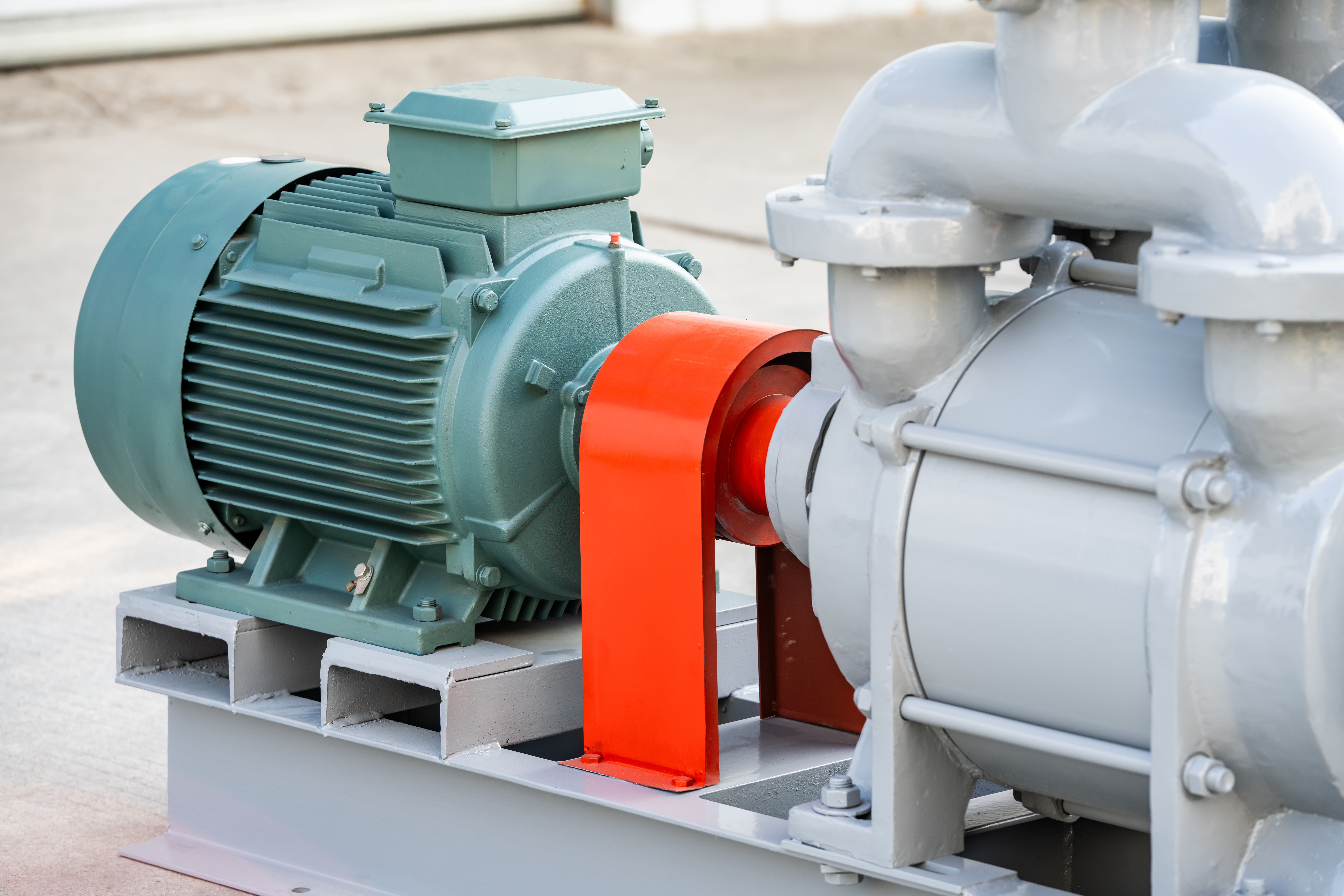

Robust Design for Harsh Operating Conditions

The single stage water ring vacuum pump demonstrates exceptional durability through its robust engineering design that withstands the most challenging industrial environments. The pump construction utilizes high-grade materials specifically selected for their resistance to corrosion, erosion, and thermal stress. Cast iron, stainless steel, or specialized alloys form the primary structural components, ensuring longevity even when handling aggressive chemicals or operating in extreme temperature ranges. The impeller design incorporates precision balancing and robust blade geometry that maintains structural integrity under continuous operation while resisting cavitation damage. Advanced manufacturing techniques ensure tight tolerances and smooth surface finishes that minimize turbulence and maximize efficiency. The casing design features reinforced walls and strategically placed ribs that distribute mechanical stresses evenly, preventing distortion under varying pressure conditions. Shaft sealing systems employ proven technologies including mechanical seals or packing arrangements that prevent water leakage while accommodating thermal expansion and operational vibrations. The bearing assembly utilizes heavy-duty components rated for extended service life, often incorporating sealed bearings that resist contamination and reduce maintenance frequency. Mounting arrangements accommodate thermal expansion and operational forces, ensuring alignment stability throughout the pump's service life. The water circulation system includes features that prevent scaling and corrosion while maintaining optimal operating temperatures. Quality control measures during manufacturing include pressure testing, vibration analysis, and performance verification to ensure each single stage water ring vacuum pump meets stringent reliability standards. This robust construction philosophy enables these pumps to operate reliably in applications ranging from chemical processing plants to marine installations, where equipment failure could result in significant operational disruptions and safety concerns. The design resilience translates into reduced replacement frequency and lower total cost of ownership for industrial facilities.

Superior Handling of Wet and Condensable Gases

Single stage water ring vacuum pumps excel in applications involving wet gases and condensable vapors, delivering unmatched performance where other vacuum technologies struggle or fail completely. This capability stems from the fundamental operating principle where water serves as both the sealing medium and condensation surface, effectively managing moisture content that would damage dry pumps or reduce efficiency in oil-sealed alternatives. The water ring creates an isothermal compression process, maintaining relatively constant temperatures that prevent vapor condensation from causing operational issues. When handling steam or solvent vapors, the water effectively condenses these substances, removing them from the gas stream while maintaining vacuum levels. This characteristic makes single stage water ring vacuum pumps indispensable in chemical processing applications involving distillation, evaporation, or drying operations where moisture management is critical. The pump design accommodates varying moisture content without performance degradation, automatically adjusting to handle everything from saturated vapors to completely dry gases. Liquid carryover presents no operational concerns, as small amounts of entrained liquids simply mix with the sealing water without causing damage to internal components. Temperature control through water circulation prevents overheating that could damage sensitive process materials or reduce pump efficiency. The ability to handle condensables extends to various chemical compounds including alcohols, ketones, esters, and other organic solvents commonly encountered in industrial processes. Process flexibility allows operation with different sealing liquids when water compatibility issues arise, expanding application possibilities to include specialized chemical environments. Separation efficiency remains high even with complex gas mixtures containing multiple condensable components, as the water ring effectively scrubs and removes various vapor phases. This superior handling capability eliminates the need for upstream condensers or gas drying equipment in many applications, simplifying system design and reducing capital costs while improving operational reliability and process efficiency.

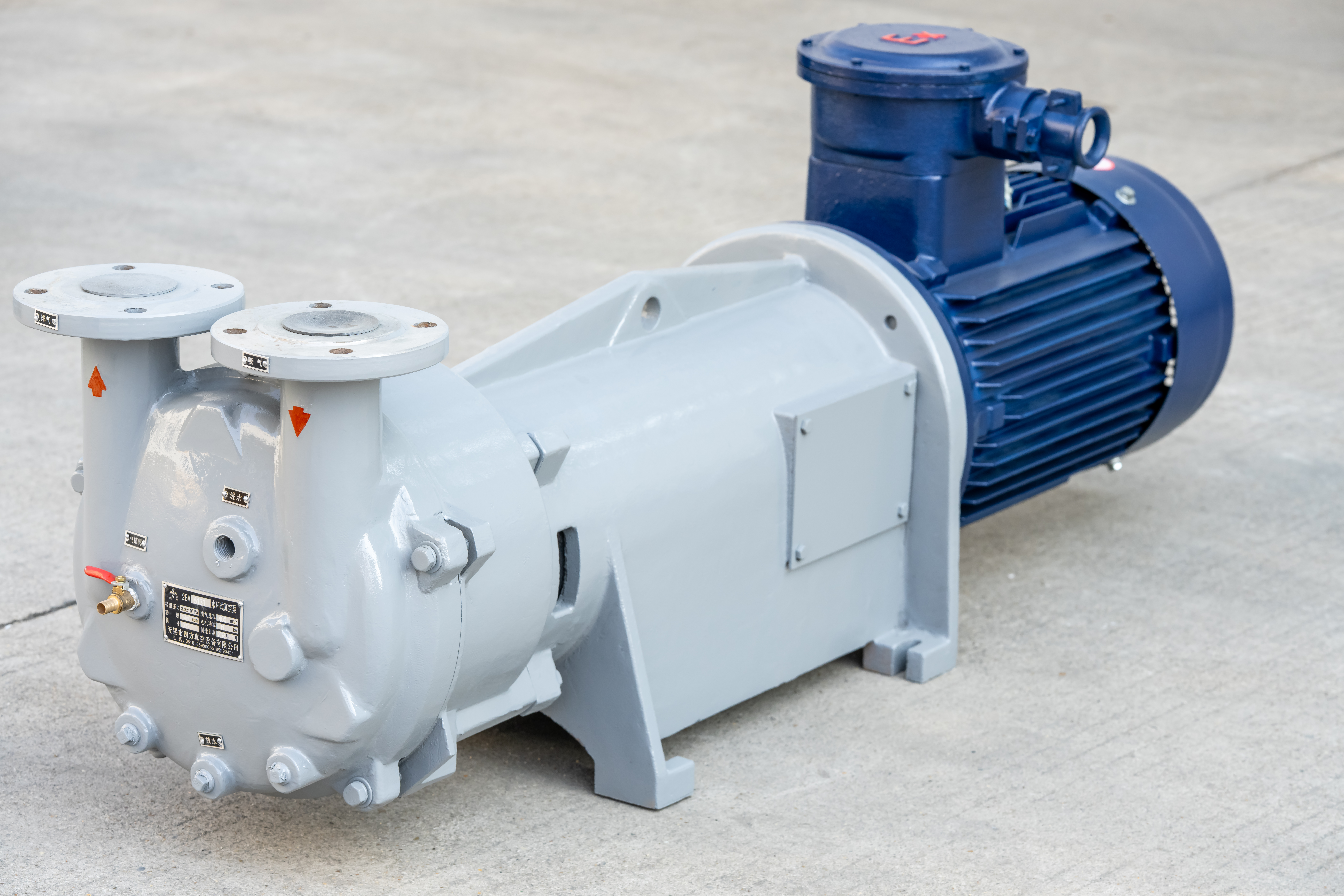

Cost-Effective Operation with Minimal Maintenance

The economic advantages of single stage water ring vacuum pumps become apparent through their exceptionally low operating costs and minimal maintenance requirements, delivering superior return on investment compared to alternative vacuum technologies. The simple mechanical design with only one moving part eliminates complex maintenance schedules associated with multi-component systems, reducing both direct maintenance costs and operational downtime. Water serves as the primary consumable, representing a fraction of the cost associated with vacuum oils required by other pump types, while eliminating disposal costs and environmental concerns related to oil changes. Energy consumption remains consistently low due to the efficient compression mechanism and absence of auxiliary systems required by other technologies, such as oil circulation pumps or complex cooling systems. Maintenance intervals extend significantly beyond those of comparable pumps, with impeller replacement typically required only after several years of continuous operation, depending on application conditions and proper system design. The self-lubricating nature of the water ring eliminates bearing lubrication requirements and reduces wear on rotating components, contributing to extended service life and reduced replacement part costs. Operational flexibility allows for varying capacity requirements without efficiency penalties, enabling energy savings during periods of reduced vacuum demand through simple flow control measures. Training requirements for operators remain minimal due to the straightforward operating principles and absence of complex control systems, reducing personnel costs and improving operational safety. Spare parts inventory costs stay low because of the limited number of wear components and the availability of standard replacement parts across different pump sizes and manufacturers. Installation costs decrease due to the simple piping requirements and absence of auxiliary systems like oil reservoirs, cooling circuits, or complex electrical controls found in other vacuum pump technologies. The ability to operate continuously without performance degradation eliminates productivity losses associated with frequent maintenance shutdowns, maximizing equipment utilization and improving overall process economics while delivering reliable vacuum performance throughout extended operational periods.
